Hospital-Grade UV Air Purifier Installed on Your HVAC, $599
Kill mold, bacteria, and viruses at the source, your evaporator coil, with a professional-grade Abatement Technologies CAP500-UV, installed by a NADCA-trained technician in under an hour.
Family-owned in Gardendale, AL since 2023 · NADCA-trained technicians · Mon,Sat 8 AM, 7 PM
Book Your Install, (205) 908-8946
The Real Air Quality Problem Isn’t Your Filter
The dirtiest part of your HVAC system isn’t the filter, it’s the evaporator coil (the “A-coil”). Every time your air conditioner runs, the coil sweats. That cold, wet surface is a perfect environment for mold and bacteria to grow, colonize, and spread through every vent in your home each time the fan kicks on.
A standard air filter does nothing about what’s already living on the coil.
The EPA reports Americans spend about 90% of their time indoors, and indoor air pollutant concentrations can be up to 2,5 times higher than outdoor levels. Central air handlers that have never been treated with germicidal UV can become a hidden source of that pollution.
Three Reasons Homeowners Are Adding UV to the Air Handler
1. Protect the Equipment You Already Paid For
Biofilm buildup on the evaporator coil isn’t just a health issue, it’s an efficiency problem. As mold and bacteria colonize the coil fins, they trap dust and reduce heat transfer, which forces the compressor to work harder to reach the same set temperature. Peer-reviewed field research on UV-C coil treatment has documented HVAC energy savings of roughly 4.5% on top of the direct efficiency gains from a cleaner coil surface.
A cleaner coil also means less strain on the blower motor, fewer emergency service calls, and a longer service life out of the equipment you already paid to install.
2. Neutralize Odors at the Source
Household odors don’t just come from cooking or pets, many biological smells originate on the wet coil itself and get pushed through the entire duct system every cycle. The CAP500-UV’s continuous UV-C irradiation destroys the microbes responsible for musty, mildew, and biological odors before they reach your living space. It also breaks down many Volatile Organic Compounds (VOCs) that pass through the airstream.
3. Germicidal UV-C, Recognized by the EPA and CDC
Ultraviolet germicidal irradiation (UVGI) is recognized by the U.S. Environmental Protection Agency as one form of UV air disinfection for HVAC systems. The CDC’s National Institute for Occupational Safety and Health (NIOSH) describes UVGI as “the use of ultraviolet (UV) energy to kill viral, bacterial, and fungal organisms” and notes that upper-room GUV systems have been used safely and effectively for over 70 years.
The Abatement Technologies CAP500-UV uses the same core UV-C technology that has been standard in hospitals, food processing, and pharmaceutical facilities for more than 60 years.
What You Get for $599 Installed

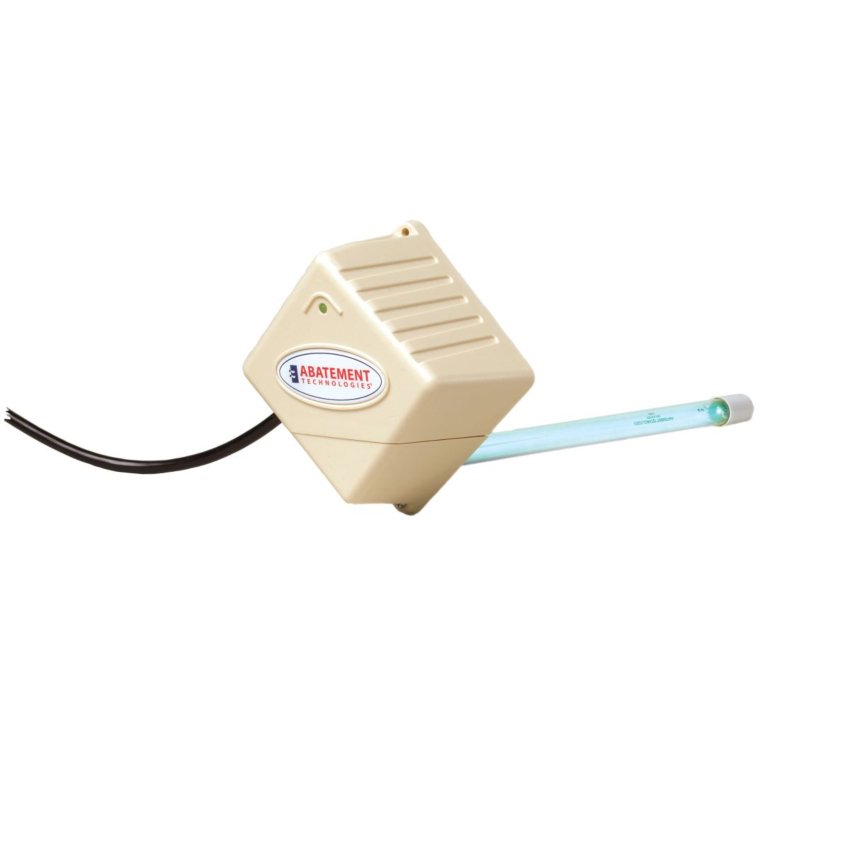

- Abatement Technologies CAP500-UV unit, genuine OEM, retail $186,$430 depending on source
- Professional installation, NADCA-trained tech; cut-in, mount, wire, and test
- Positioning above the A-coil, the high-impact location per manufacturer specification
- Workmanship warranty, 90 days on our install work
- Manufacturer warranty, 2 years on the unit (Abatement Technologies)
- First lamp installed, UV425 germicidal lamp, rated ~9,000 hours / 1 year
Annual lamp replacement service is available separately, just schedule when the built-in indicator turns yellow.
Who Handles Your Install
Every UV install is performed by a NADCA-trained, background-checked DUCTS technician. We show up on time, respect your home, and finish the install in under an hour on a standard residential air handler. No high-pressure upsells and no surprise charges, the $599 you see is the total for the unit + install.

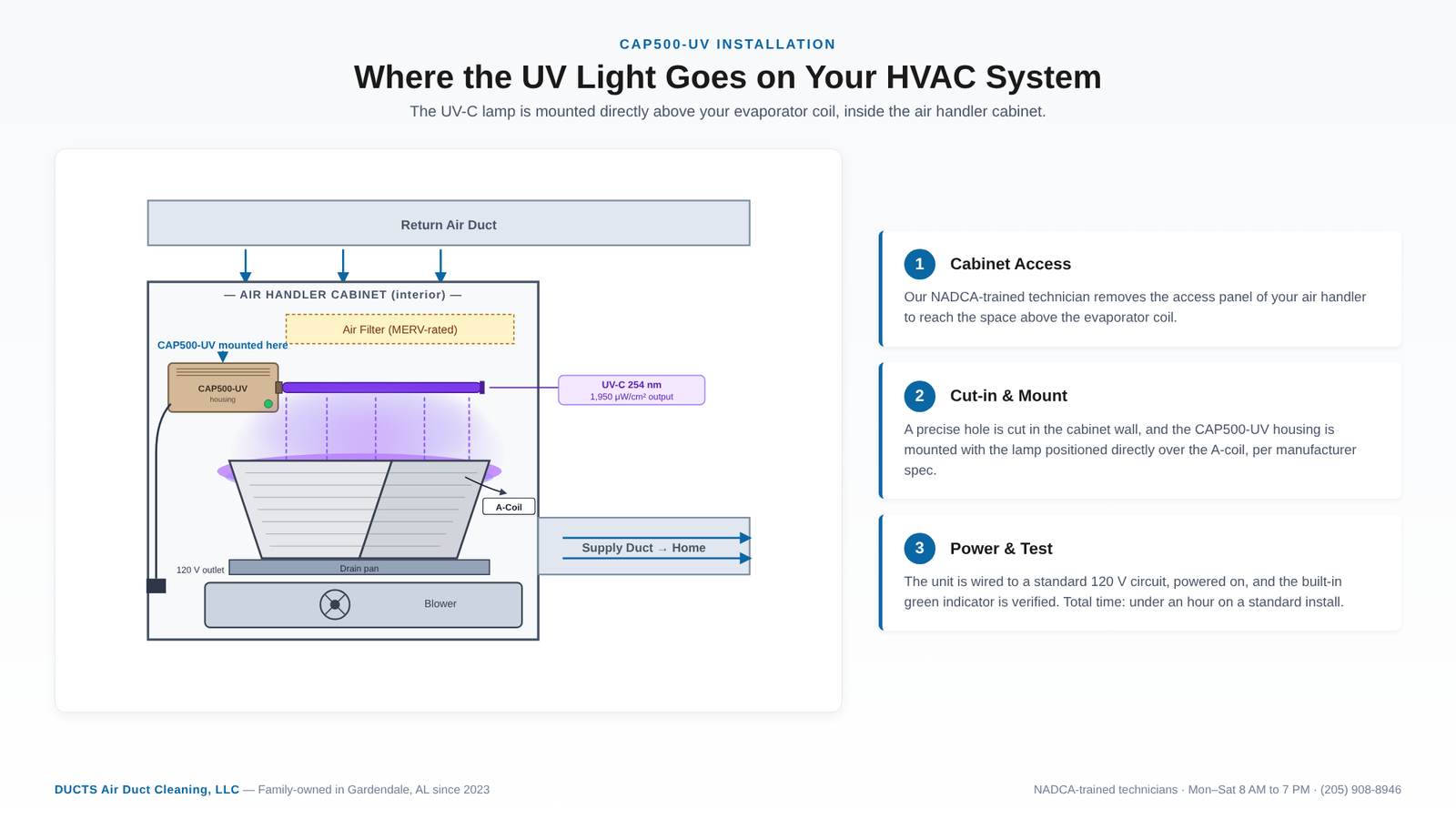

How the CAP500-UV Works
The unit is mounted directly above your evaporator coil inside the air handler cabinet. Its 1,950 μw/cm² UV-C lamp continuously irradiates the coil surface and every cubic foot of air that passes over it. Microorganisms exposed to that level of UV-C energy at the 254 nm germicidal wavelength cannot reproduce, so the biological load on the coil drops sharply and stays down as long as the lamp is working.
The unit is ozone-free. It does not introduce any chemicals or byproducts into your indoor air.
A built-in status indicator tells you at a glance whether the lamp is still working:
- Green, operating within acceptable range
- Yellow, output declining, schedule replacement
- Red, lamp inoperable, replace immediately
An audible chirp alarm also triggers when the indicator hits yellow, so you don’t have to check it manually.
Technical Specifications
| Model | Abatement Technologies CAP500-UV |
| Lamp type | Germicidal UV-C, no ozone |
| UV output | 1,950 μw/cm² @ 6″ |
| Wavelength | 254 nm (germicidal UV-C spectrum) |
| Rated lamp life | ~9,000 hours / 1 year |
| Status indicator | Visual (Green / Yellow / Red) + audible chirp alarm |
| Install location | Above the A-coil in the central air handler |
| Power | Standard 120 V outlet |
| Certifications | Conforms to UL 1598 & CSA No. 250 (tested & certified) |
| Manufacturer warranty | 2 years (original user) |
| Replacement lamp | UV425 |
| Manufacturer | Abatement Technologies®, in the air purification industry since 1985 |
Who This Is For
- Homeowners with forced-air HVAC systems who want a permanent, maintenance-light layer of biological control on their coil.
- Households with pets who want to reduce coil-based biological odors circulating through the vents.
- Homeowners replacing a dead UV system, direct upgrade path to a genuine Abatement Technologies unit.
- New HVAC installations, the right time to add coil-level UV protection before the biofilm ever gets started.
What This Does NOT Do
We prefer to be direct about the limits of the technology:
- It is not a substitute for regular air duct cleaning. UV kills microbes on the coil surface and in the airstream, but it does not remove existing dust, debris, or historic buildup already inside your ductwork. For that, we recommend a full duct clean.
- It does not filter out particles. UV energy does not trap pollen, dust, or smoke, that’s the job of your air filter. Continue using a quality MERV-rated filter appropriate for your system.
- It is not a medical device. We do not make claims about treating or preventing any illness.
- Direct exposure to UV-C light is not safe for eyes or skin. The lamp is fully enclosed inside the air handler cabinet during operation, which is why it’s safe as installed, but the lamp should not be operated outside the cabinet or during service.
Frequently Asked Questions
How long does the install take?
Typically under an hour on a standard residential air handler. Longer if we need to run new power or work around a difficult cabinet layout.
Does the CAP500-UV produce ozone?
No. The CAP500-UV lamp is a germicidal UV-C lamp only, no ozone output. (Abatement Technologies also makes a “-UVP” ozone-producing version for severe odor problems; that’s a different product.)
Do I still need to clean my ducts?
Yes. UV kills what’s growing on the coil and in the airstream going forward, it doesn’t remove what’s already accumulated in your ductwork. Most homeowners install UV after a full duct clean, not instead of one.
How often does the lamp need to be replaced?
Manufacturer specifies replacement every ~9,000 hours of operation, which is roughly once a year for typical homes. The built-in indicator handles the timing, you don’t have to track hours.
Will this raise my electric bill?
The unit runs on a standard 120 V outlet and draws roughly the same power as a compact fluorescent bulb. Peer-reviewed field research on UV-C coil treatment has documented small net HVAC energy savings (about 4.5% in mixed studies) because a cleaner coil transfers heat more efficiently.
What if the unit fails?
Abatement Technologies warranties the unit for 2 years to the original user. Our workmanship warranty covers our install work for 90 days. If either the unit or our install fails within those windows, we’ll make it right.
Ready to Get It Installed?
Book a UV install, (205) 908-8946
Family-owned in Gardendale, AL since 2023 · NADCA-trained technicians · Serving Central Alabama and Greater Birmingham · Mon,Sat 8 AM, 7 PM
